RKsc2 Servo Control Unit - Constructed

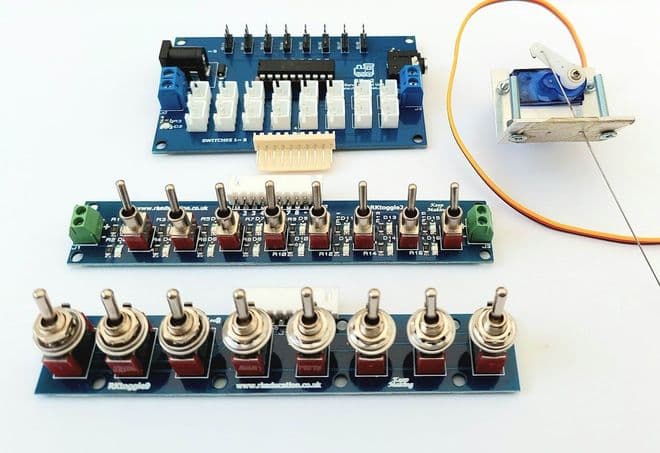

This handy little product has been designed to actuate micro servos which are a popular choice for turnout/point control. The PCBs have been designed to be compact and simple to use, there is a control PCB and a separate toggle switch PCB, the toggle switch PCB attaches to the control PCB with a 30cm ribbon cable. It is just a case of plugging the servos to the headers and there are LEDs to indicate switch/servo position. Power comes from a 5VDC supply and it is possible to daisy chain further modules from a single power supply. This is perfect for use with Rk Education’s servo mounting bracket RKBracket1 and servo extension leads.
- This is an extremely versatile system and it has been specifically designed to control servos
- Perfect for point/turnout control when used with RKBracket1
- The system can control 8 servos
- For servo extension leads click here
- Each servo is controlled using a PCB mounted toggle switch from a separate switch module PCB
- The toggle switch PCB connects to the control PCB via a 30cm ribbon cable
- Each servo is connected to the module using 3 way servo cable via a PCB header
- The module is powered using a 5VDC power supply, further modules can be easily daisy chained allowing several modules to be powered from a single power supply
- The toggle switches module can either be panel mount toggles of PCB mount toggles
- The PCB mount toggle switch module has surface mount LEDs to indicate switch position
- The control module has sockets for plug in LEDs to indicate switch position, ideal for mimic panels
- Designed and manufactured in the UK
- Uses a high quality, professional, double sided PCB with silkscreen layer
- The PCBs have mounting holes - PCB mounting pads are included
- The RKsc2 comes with the control module, ribbon cable and a either a RKtoggle2 (PCB mount toggles) or RKtoggle9 (panel mount toggles)
- The starter kit includes RKsc2, toggle switch module (panel mount of miniature PCB mount switches) PSU, 8 servos, 8 servo brackets, 8 sets of fasteners and 8 lengths of piano wire
