RKsc1 Servo Control Unit for Model Railways - Constructed

Product code: RKsc1

Product information

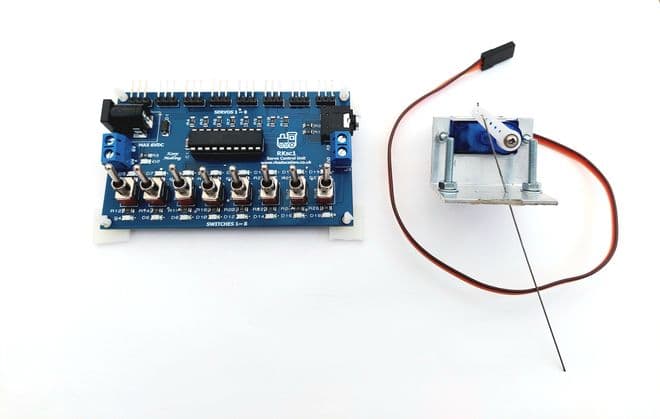

RKsc1 Servo Control Unit - Constructed
This handy little product has been designed to actuate micro servos which are a popular choice for turnout/point control.  The PCB has been designed to be compact and simple to use and has the toggle switches mounted to the PCB, it is just a case of plugging the servos to the headers and there are LEDs to indicate switch/servo position.  Power comes from a 6VDC supply and it is possible to daisy chain further modules from a single power supply.  This is perfect for use with Rk Education’s servo mounting bracket RKBracket1 and servo extension leads.
  • This is an extremely versatile system and it has been specifically designed to control servos
  • Perfect for point/turnout control when used with RKBracket1
  • The system can control 8 servos
  • For servo extension leads click here
  • Each servo is controlled using a PCB mounted toggle switch
  • Each servo is connected to the module using 3 way servo cable via a PCB header
  • The module is powered using a 6VDC power supply, further modules can be easily daisy chained allowing several modules to be powered from a single power supply
  • The toggle switches are smooth neck, sub miniature toggle PCB mount switches
  • Each toggle switch has LEDs to indicate toggle switch position
  • Designed and manufactured in the UK
  • Uses a high quality, professional, double sided PCB with silkscreen layer
  • The PCBs have mounting holes - PCB mounting pads are included
  • The RKsc1 Starter Kit includes RKsc1, PSU, 8 servos, 8 servo brackets, 8 sets of fasteners and 8 lengths of piano wire
  • The RKsc1 option includes the RKsc1

Technical specifications

Brand RK Education
Condition New
Product Code RKsc1
