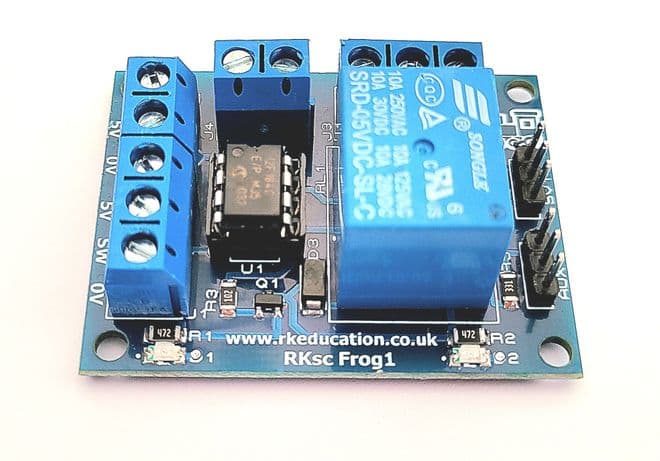

RKsc Frog1 Servo Control Unit for Model Railways with Frog Polarity Control

View more images

RKsc Frog1 Servo Control Unit for Model Railways with Frog Polarity Control

Name: RKsc Frog1 Servo Control Unit for Model Railways with Frog Polarity Control - RKtoggle Breakout PCB with PCB Mount Toggles
Brand: RK Education
SKU: RKsc1
Price: 13.99 GBP
Availability: InStock

Product code: RKsc1

RKsc Frog1 Servo Control Unit with Frog Polarity Control

Product information

RKsc Frog1 Servo Control Unit with Frog Polarity Control

This handy little product has been designed to actuate micro servos which are a popular choice for turnout/point control. The PCB has been designed to be compact and simple to use, it is just a case of plugging the servos to the headers. Power comes from a 5VDC supply and it is possible to daisy chain further modules from a single power supply. There is also a relay to allow the module to control frog polarity. This is perfect for use with Rk Education’s servo mounting bracket RKBracket1 and servo extension leads.

This is an extremely versatile system and it has been specifically designed to control servos
Perfect for point/turnout control when used with RKBracket1
The module has a relay to allow frog polarity control
For servo extension leads click here
Each servo is controlled using a toggle switch
A servo is connected to the module using 3 way servo cable via a PCB header
The module is powered using a 5VDC power supply, further modules can be easily daisy chained allowing several modules to be powered from a single power supply
Designed and manufactured in the UK
Uses a high quality, professional, double sided PCB with silkscreen layer
The PCBs have mounting holes - PCB mounting pads are included
The RKsc Frog1 Starter Kit includes 1x toggle switch module (PCB or panel mount) and cable, 1x RKtoggle breakout module, 8x RKsc Frog1, 1x PSU, 8 servos, 8 servo brackets, 8 sets of fasteners and 8 lengths of piano wire
