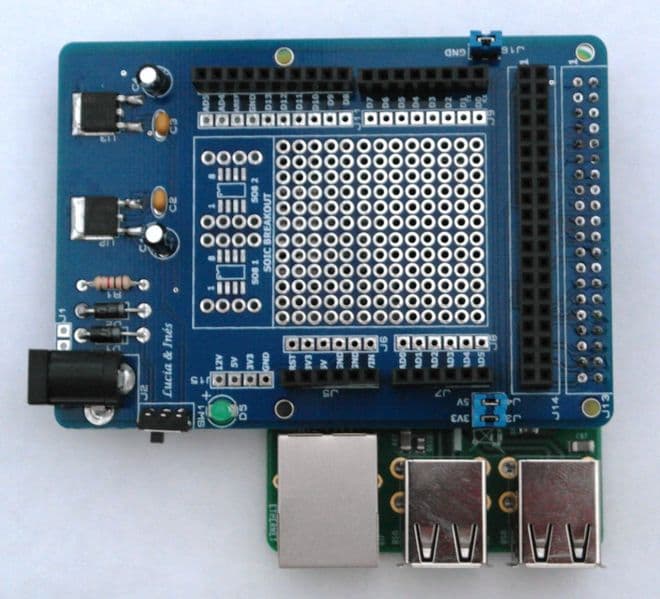

RKSB RP B+ GPIO Shield Base Interface Project Board for Raspberry PI & Arduino Atmel
RKSB RP B+ GPIO Shield Base Interface Project Board for Raspberry PI & Arduino Atmel
RKSB RP B+ GPIO Shield Base Interface Project Board for Raspberry PI & Arduino Atmel

RKSB RP B+ GPIO Shield Base Interface Project Board for Raspberry PI & Arduino Atmel

Product code: RKSB RP B+
RKSB RP B+ GPIO Shield Base Interface Project Board for interfacing a Raspberry PI B+ to Arduino Shields.

Product information

RKSB RP B+ Shield Base Project Board for Raspberry PI & Atmel
  • A low cost and simple method of interfacing Raspberry PI B+ projects to Arduino shields
  • This is a self build kit, the TO252 ICs are easily soldered
  • Interfaces to a Raspberry PI B+ a header - push on
  • The user makes connections between the Raspberry PI B+ and Arduino using jumper wires
  • The Arduino shield then is pushed onto the headers
  • Includes a 40 way dual row breakout header for interfacing to Raspberry PI
  • Includes a power supply circuit with TO252 7805 and LD1117V33 regulators
  • Manufactured using a double sided professional blue PCB
  • Incorporates a small prototype area with plated through holes
  • Includes 2x SO8 breakouts
  • An excellent method of interfacing Raspberry PI B+ projects to Arduino shields
  • Documentation and PDF schematic available

Technical specifications

Brand RKEducation
Condition New
Product Code RKSB RP B+
