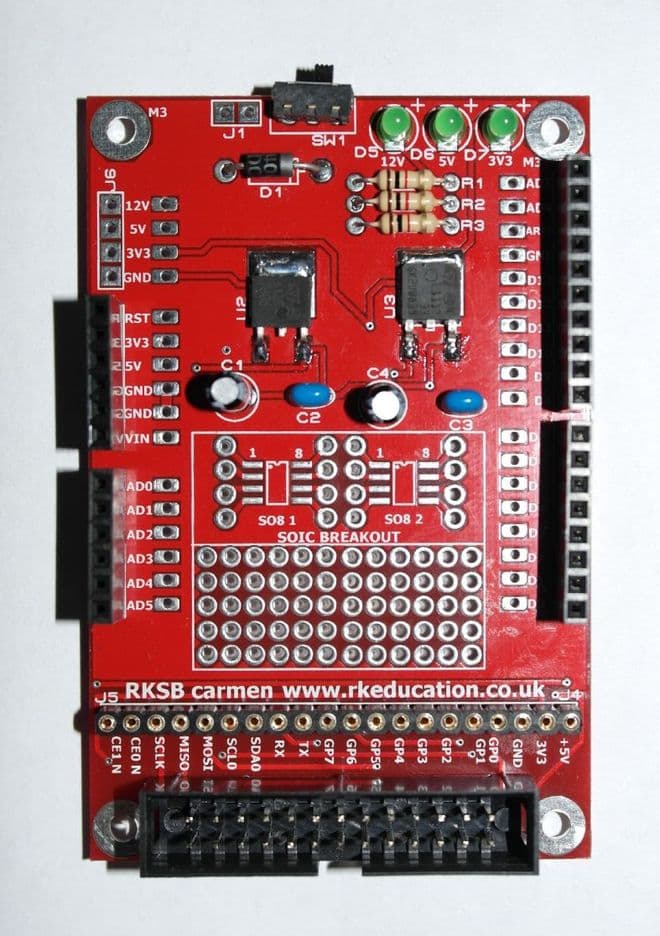

RKSB Carmen Shield Base Project Board for Raspberry PI & Atmel

Product code: RKSB CARMEN KIT

Product information

A low cost and simple method of interfacing Raspberry PI projects to Arduino shields
This is a self build kit, the TO252 ICs are easily soldered
Interfaces to a Raspberry PI via a ribbon cable, available in my shop
The user makes connections between the Raspberry PI and Arduino using jumper wires
The Arduino shield then is pushed onto the headers
Includes a 26 way dual row breakout header for interfacing to Raspberry PI
Includes a power supply circuit with TO252 7805 and LD1117V33 regulators
Manufactured using a double sided professional red PCB
Incorporates a small prototype area with plated through holes
Includes 2x SO8 breakouts
An excellent method of interfacing Raspberry PI projects to Arduino shields
Documentation and PDF schematic available
