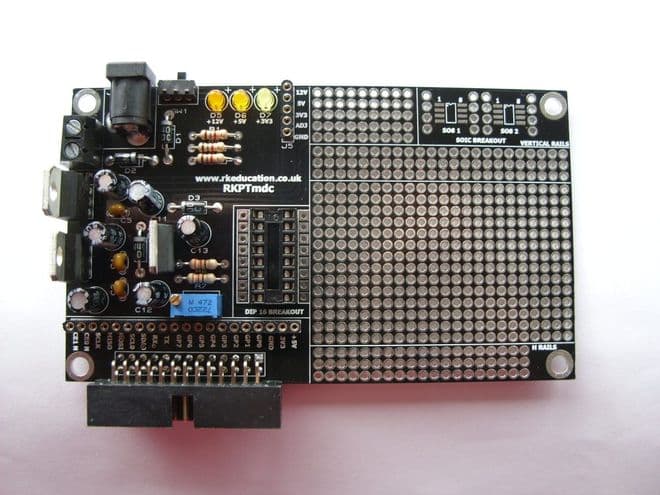

RKPTmdc Prototype PCB for Raspberry PI Self Build Kit

Product code: RKPTMDC KIT
RKPTmdc Prototype Project Board for Rasberry PI.
£4.49
You will earn 4 loyalty points with this purchase

Product information

RKPTmdc Prototype Project Board for Rasberry PI
  • A low cost and simple method of prototyping Raspberry PI projects
  • Includes a 26 way dual row breakout header for interfacing to Raspberry PI
  • Manufactured using a double sided professional double sided PCB
  • Incorporates a large prototype area with plated through holes
  • Includes a DIP breakout, for example for a multiplexing IC
  • The prototyping area has adjustable, 0V 3.3V, 5V and 12V power rails with power indicator LEDs
  • The adjustable voltage outputs between 2.5 and 10VDC (approx)
  • The unit can either powered by battery or DC mains supply
  • Incorporates LM317T, 7805 and 3.3V voltage regulators
  • The unit has 2 surface mount SO8 footprints with plated through breakouts for each pin
  • An excellent method for students and hobbyists to produce Raspberry PI projects
  • Documentation and PDF schematic available
  • Click here

Technical specifications

MPN RKPTmdc
Brand RKEducation
Condition New
Product Code RKPTMDC KIT
