RkPSU v1 SMT Single Output PSU for Model Railways - Built

RkPSU v1 SMT Single Output PSU for Model Railways - Built

Name: RkPSU v1 SMT Single Output PSU for Model Railways - Built
Brand: RKEducation
SKU: RkPSU v1 Built
Price: 3.49 GBP
Availability: InStock

Product code: RkPSU v1 Built

RkPSU v1 SMT Built

Product information

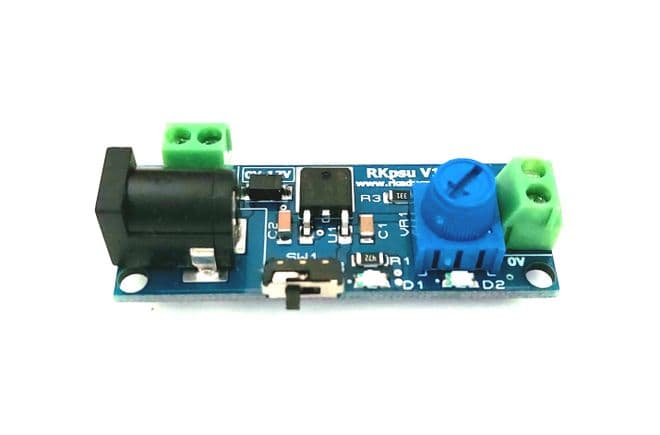

RkPSU v1 SMT

This module has been designed to power model railway lighting systems and other accessories. Power is supplied to the module via a terminal block, then power is outputted via the terminal block, the voltage is varied using the potentiometer.

This is an extremely versatile little module and it has many uses
The can be used to power lights, accessories etc
Designed to be powered from 12VDC
The module uses surface mount technology
Provides power to a 2way, 5mm terminal block (right hand side)
The module provides one variable output, at 12VDC input it outputs from aprrox 1.2VDC to 11VDC
The voltage is varied using the potentiometer
The output can deliver up to 1Amp
Designed and manufactured in the UK
Uses a high quality, professional, double sided PCB with silkscreen layer
The PCB is compact - 50x18xmm
The PCB has mounting holes - PCB mounting pads are included
Ideal for model railway lighting
