RkPSU v1 Single Output PSU for Model Railways - Self Build Kit

Product code: RkPSU v1 Kit
RkPSU v1 Self Build Kit
You will earn 1 loyalty points with this purchase

Product information

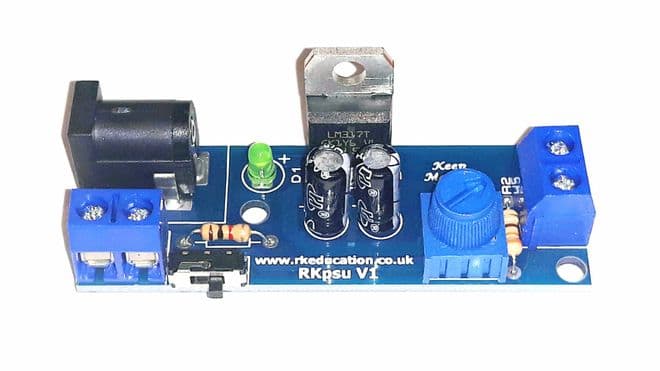

RkPSU v1
This module has been designed to power model railway lighting systems and other accessories.  Power is supplied to the module via a terminal block, then power is outputted via the terminal block, the voltage is varied using the potentiometer.
  • This is an extremely versatile little module and it has many uses
  • The can be used to power lights, accessories etc
  • Designed to be powered from 12VDC
  • The module can also be powered from 12VDC to 24VDC
  • Provides power to a 2way, 5mm terminal block (right hand side)
  • The module provides one variable output, at 12VDC input it outputs from aprrox 1.2VDC to 11VDC
  • The voltage is varied using the potentiometer
  • The output can deliver up to 1Amp
  • Designed and manufactured in the UK
  • Uses a high quality, professional, double sided PCB with silkscreen layer
  • The PCB is compact  - 59x22mm
  • The PCB has mounting holes - PCB mounting pads are included
  • Ideal for model railway lighting

Technical specifications

Brand RKEducation
Condition New
Product Code RkPSU v1 Kit
