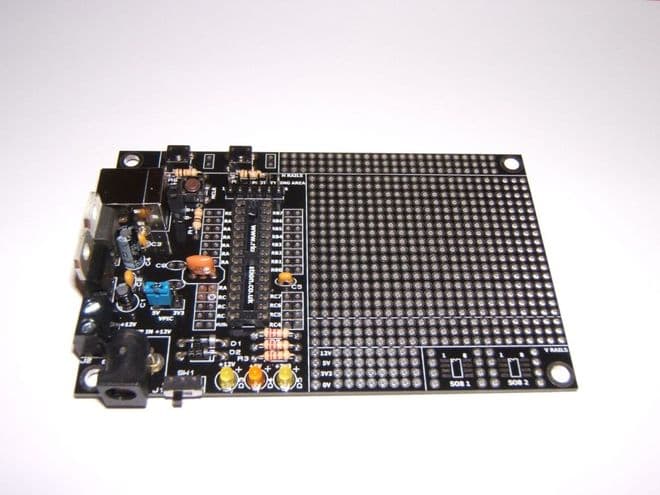

RKPK28 Prototype Project Board - designed to be fully compatible with PIC® and PicKit®
- A low cost and simple method of prototyping 28 pin PIC® projects
- Can be used with most PIC® 28 pin Microcontrollers
- Has been designed for use with PicKit programmers from Microchip
- Manufactured using a double sided professional double sided PCB
- Incorporates a large prototype area with plated through holes
- Includes a software download socket
- Input and outputs are accessed via plated through holes around the MCU
- The prototyping area has 0V 3V3 5V and 12V power rails
- The unit can either powered by battery or DC mains supply
- Incorporates LD1117V33 and 7805 voltage regulators
- The regulated 5V output is available at a terminal block
- An excellent method for students and hobbyists to produce PIC® projects
- Documentation and PDF schematic available
Technical specifications
| Brand | RKEducation |
| Product Code | RKPK28 KIT |
