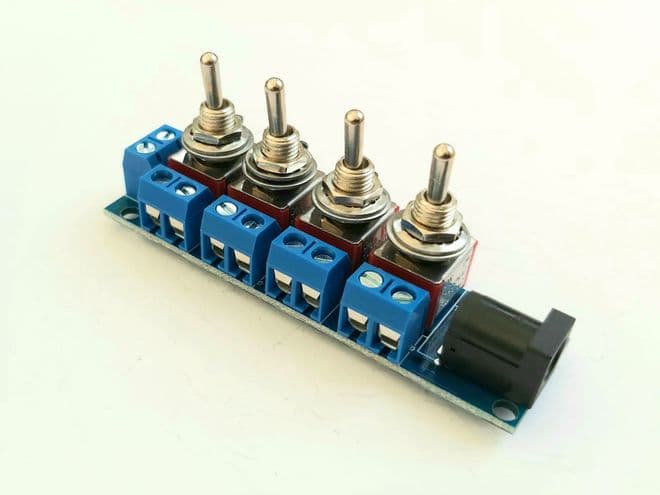

Name: RKpdu5 DPDT Power Distribution Unit for Model Railway - ON ON DPDT Toggles Constructed
Brand: RK Education
SKU: RKpdu5 ON ON constructed
Price: 7.99 GBP
Availability: InStock

Product code: RKpdu5 ON ON constructed

RKpdu5 ON ON Constructed

Product information

RKpdu5 - ON ON DPDT Toggles

This module can be used to reverse polarity

This module has been designed to power model railway accessories. Power is supplied to the module via the DC socket or the terminal block on the end, then power is controlled by the DPDT toggle switches and outputted via the terminal blocks.

This is an extremely versatile little module and it has many uses
The DPDT toggles allows the module to be used as a polarity reversing circuit
Provides power to 4x 2way, 5mm terminal blocks
Power is controlled using the DPDT toggle switches
This version uses ON ON toggles, there is also a version that uses ON OFF ON toggle switches and (ON) OFF (ON) - (ON) = momentary
The module can output power to 4 separate circuits
Uses a 2.1mm DC socket and a terminal block for power input, the terminal block can be used to power further modules
Designed and manufactured in the UK
Uses a high quality, professional, double sided PCB with silkscreen layer
The PCB is compact - 60x22mm
The PCB has mounting holes
