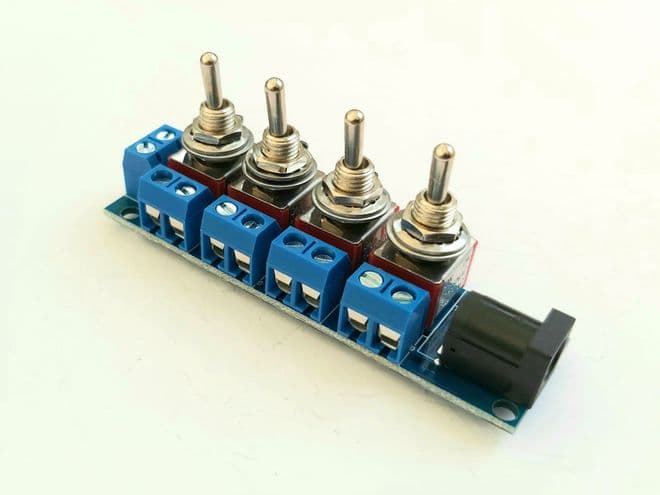

RKpdu5 DPDT Power Distribution Unit for Model Railway - ON OFF ON DPDT Toggles Constructed

Product code: RKpdu5 ON OFF ON constructed
RKpdu4 ON OFF ON Constructed

Product information

RKpdu5 - ON OFF ON DPDT Toggles
This module can be used to reverse polarity
This module has been designed to power model railway accessories.  Power is supplied to the module via the DC socket or the terminal block on the end, then power is controlled by the DPDT toggle switches and outputted via the terminal blocks.
  • This is an extremely versatile little module and it has many uses
  • The DPDT toggles allows the module to be used as a polarity reversing circuit
  • Provides power to 4x 2way, 5mm terminal blocks
  • Power is controlled using the DPDT toggle switches
  • This version uses ON OFF ON toggles, there is also a version that uses ON ON toggle switches and (ON) OFF (ON)  - (ON) = momentary
  • The module can output power to 4 separate circuits
  • Uses a 2.1mm DC socket and a terminal block for power input, the terminal block can be used to power further modules
  • Designed and manufactured in the UK
  • Uses a high quality, professional, double sided PCB with silkscreen layer
  • The PCB is compact  - 60x22mm
  • The PCB has mounting holes

Technical specifications

Brand RK Education
Condition New
Product Code RKpdu5 ON OFF ON constructed
