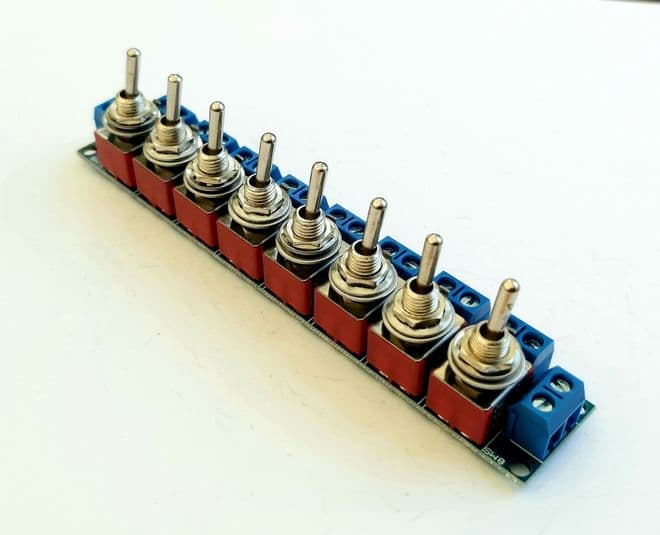

RKpdu4 DPDT Power Distribution Unit for Model Railway - ON ON DPDT Toggles Constructed

Product code: RKpdu4 ON ON constructed
RKpdu4 ON ON Constructed

Product information

RKpdu4 - ON ON DPDT Toggles
This module can be used to reverse polarity
This module has been designed to power model railway accessories.  Power is supplied to the module via the terminal block on the end, then power is controlled by the DPDT toggle switches and outputted via the terminal blocks.
  • This is an extremely versatile little module and it has many uses
  • The DPDT toggles allows the module to be used as a polarity reversing circuit
  • Provides power to 8x 2way, 5mm terminal blocks
  • Power is controlled using the DPDT toggle switches
  • This version uses ON ON toggles, there is also a version that uses ON OFF ON toggle switches and (ON) OFF (ON) - (ON) = momentary
  • The module can output power to 8 separate circuits
  • Uses 2 terminal blocks for power input, the second can be used to power further modules
  • Designed and manufactured in the UK
  • Uses a high quality, professional, double sided PCB with silkscreen layer
  • The PCB is compact  - 120x22mm
  • The PCB has mounting holes

Technical specifications

Brand RK Education
Condition New
Product Code RKpdu4 ON ON constructed
