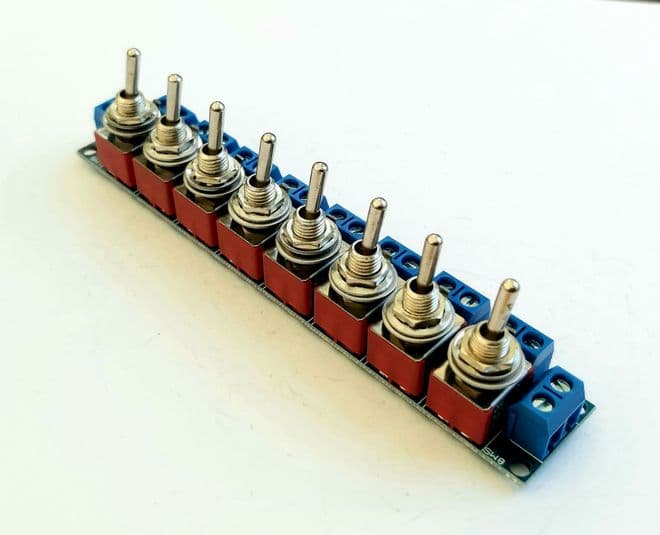

RKpdu4 DPDT Power Distribution Unit for Model Railway - ON OFF ON DPDT Toggles Constructed

RKpdu4 DPDT Power Distribution Unit for Model Railway - ON OFF ON DPDT Toggles Constructed

Name: RKpdu4 DPDT Power Distribution Unit for Model Railway - ON OFF ON DPDT Toggles Constructed
Brand: RK Education
SKU: RKpdu4 ON OFF ON constructed
Price: 12.99 GBP
Availability: InStock

Product code: RKpdu4 ON OFF ON constructed

RKpdu4 ON OFF ON Constructed

Product information

RKpdu4 - ON OFF ON DPDT Toggles

This module can be used to reverse polarity

This module has been designed to power model railway accessories. Power is supplied to the module via the terminal block on the end, then power is controlled by the DPDT toggle switches and outputted via the terminal blocks.

This is an extremely versatile little module and it has many uses
The DPDT toggles allows the module to be used as a polarity reversing circuit
Provides power to 8x 2way, 5mm terminal blocks
Power is controlled using the DPDT toggle switches
This version uses ON OFF ON toggles, there is also a version that uses ON ON toggle switches and (ON) OFF (ON) - (ON) = momentary
The module can output power to 8 separate circuits
Uses 2 terminal blocks for power input, the second can be used to power further modules
Designed and manufactured in the UK
Uses a high quality, professional, double sided PCB with silkscreen layer
The PCB is compact - 120x22mm
The PCB has mounting holes
