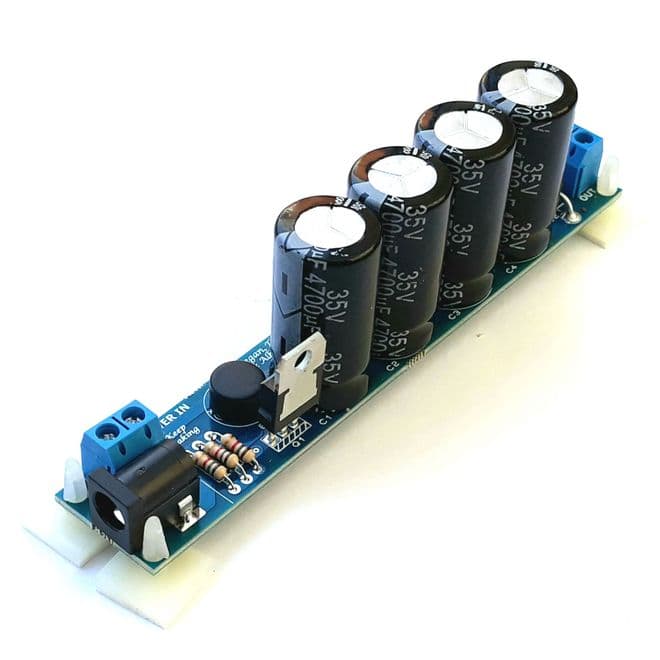

RKcdu2 Capacitor Discharge Unit - CDU - 4x 4700uF - Constructed
RKcdu2 Capacitor Discharge Unit - CDU - 4x 4700uF - Constructed

RKcdu2 Capacitor Discharge Unit - CDU - 4x 4700uF - Constructed

(2)
Product code: RKcdu2 4700 built
RKcdu2 4x 4700uF CDU

Product information

RKcdu2
Description
  • Provides a high current pulse to "snap" points across positively from the capacitors
  • Limits subsequent points current to prevent coil burn out
  • Prevents voltage drop to other parts of the installation during points action.
  • Operates on AC or DC supplies
  • Includes a 2.1mm DC socket - this is a unique feature
  • Designed and manufactured in the UK
  • Uses a high quality industrial double sided PCB
  • Available as a blank PCB, self build kit or constructed unit
  • Documentation and PDF schematic available

Technical specifications

Brand RKEducation
Condition New
Product Code RKcdu2 4700 built

product review overlay image

Customer reviews

(2 Customer reviews)
Write A Review
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Amazing

I was really impressed with all the items I purchased. The capacitor discharge unit especially. It's well made, compact, and a doddle to connect up. It operates perfectly and charges up incredibly quickly too. So impressed I bought 4 more.

Nick Beckley | Maldon, Essex | December 2020

Easy and powerful

I make my own finescale track, so I'd had trouble getting those cheap Seep motors to throw all the way over. I'd been looking into getting a CDU for a while, but they were all either expensive, low powered, or self assembly, so when I saw this on show at the Doncaster Festival this weekend I snapped it up and had it installed the same night super easy - all my problems cured in one go! It's rated up to 35V, and I'd thought I'd need to use 24V - but actually, just 16VAC from my ancient Duette is absolutely fine. With 18.8mf of capacitance, this is just a beast!

Ronnie Cassinello | Sheffield | February 2023
