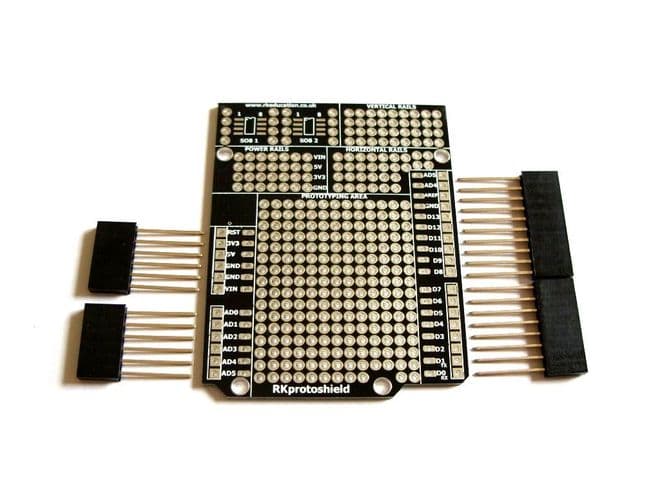

RK Shield Prototype Self Build Kit

Product code: RK SHIELD KIT
RKShield Prototype Project Board - designed to be fully compatible with shield bases

Product information

RKShield Prototype Project Board - designed to be fully compatible with shield bases
Main Features
  • A low cost and simple method of prototyping shield projects
  • Can be used with all Arduino and PIC/PICAXE shield bases
  • Manufactured using a professional double sided PCB
  • There are 2 SO8 breakouts
  • Designed to be compatible with shield bases
  • Input and outputs are accessed via labelled headers around the PCB
  • The PCB has 0V 3.3V, 5V and 12V power outputs
  • Documentation availab

Technical specifications

MPN RKShield Prototype
Brand RKEducation
Condition New
Product Code RK SHIELD KIT

product review overlay image

Customer reviews

(1 Customer reviews)
Write A Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars

Good Design

Great design good use of space good use of horizontal and vertical rails with so8 pinout

dave windsor | kent | February 2020
