Relay System - OFF ON Panel Mount Toggles

Product information

Relay Control System

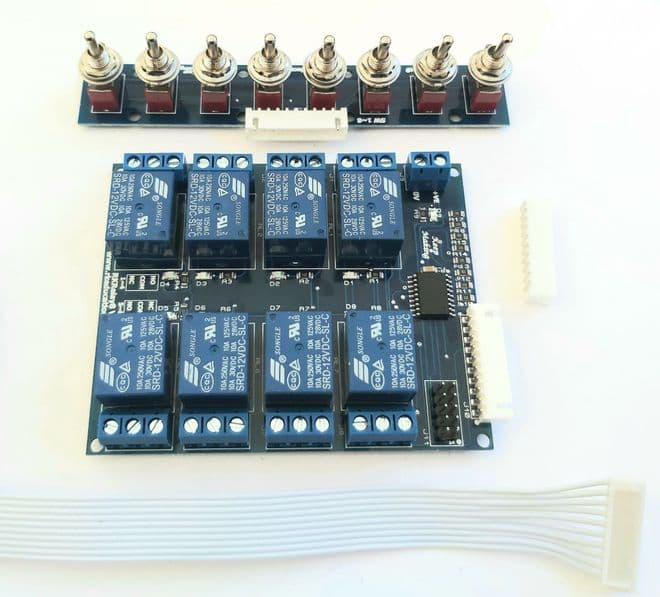

The system consists of a switch module connected to a relay module using a ribbon cable and users simply use a switch to power a relay on or off. The relay module can then be used for switching voltages on and off with each relay is capable of switching up to 10 amps. This system is perfect for isolating sections of track, for example in sidings, but also has many other uses where it is necessary to switch voltages on and off, such as lighting. The system is sold fully soldered and includes a switch module, a relay module, a ribbon cable and 10 meters of 2 way wire.

This is an extremely versatile system and it has many uses
Perfect for isolating sections of track
The system can be used to power lights, accessories etc
Controls 8 separate circuits using 8 power relays
Each relay has its own 3 way terminal block
Each relay is controlled using a toggle switch
The toggle switch module connects to the relay module using a ribbon cable
The toggle switch module uses OFF ON panel mount toggle switches, other toggle switch option are available
Designed and manufactured in the UK
Uses a high quality, professional, double sided PCB with silkscreen layer
The PCBs have mounting holes - PCB mounting pads are included
Also included is a 10m roll of 2way cable
