Relay Control System - ON OFF Toggles - Constructed

Product code: Relay System Panel ON OFF
Relay System - ON OFF Panel Mount Toggles
£19.99
You will earn 19 loyalty points with this purchase

Product information

Relay Control System

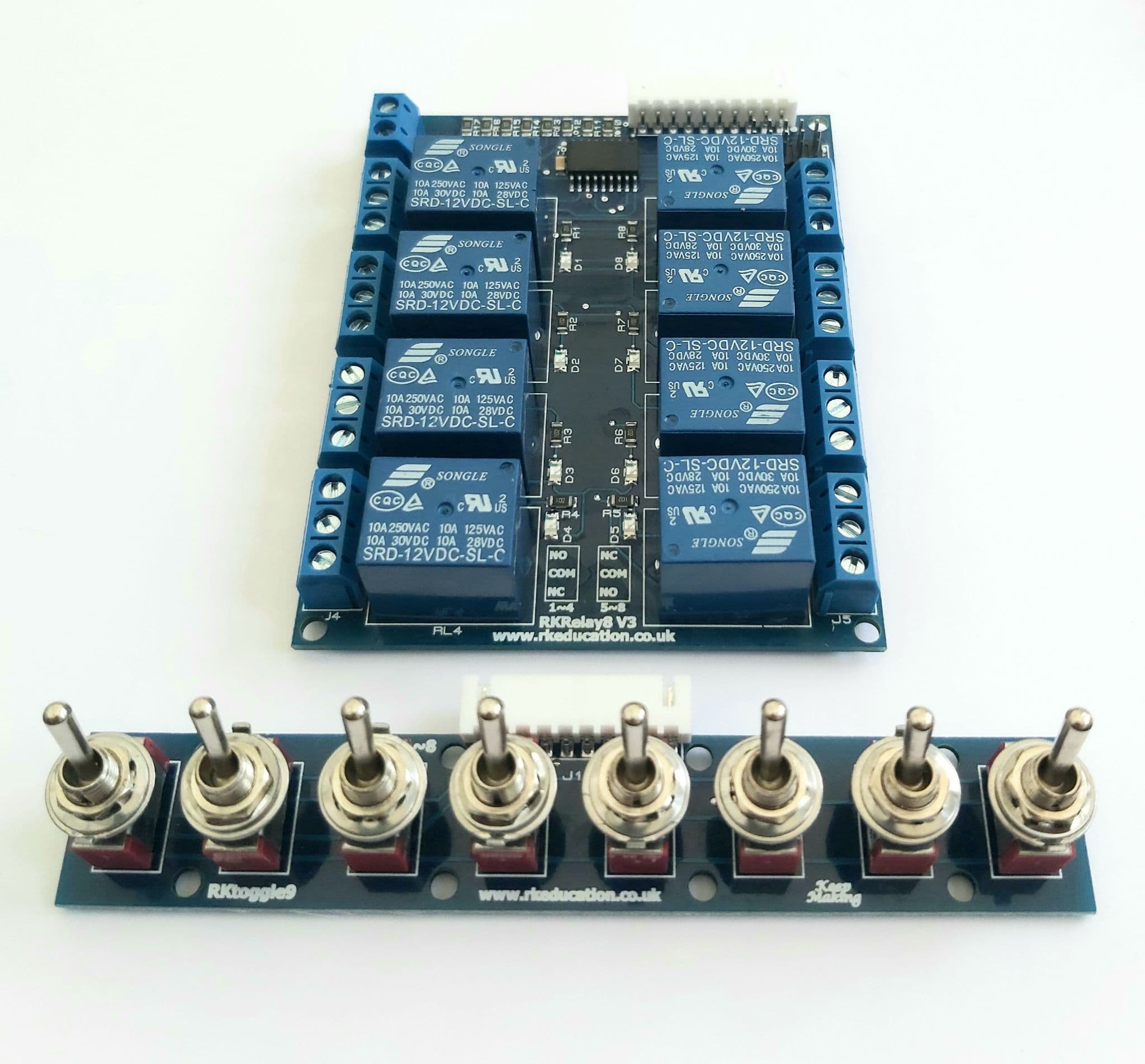

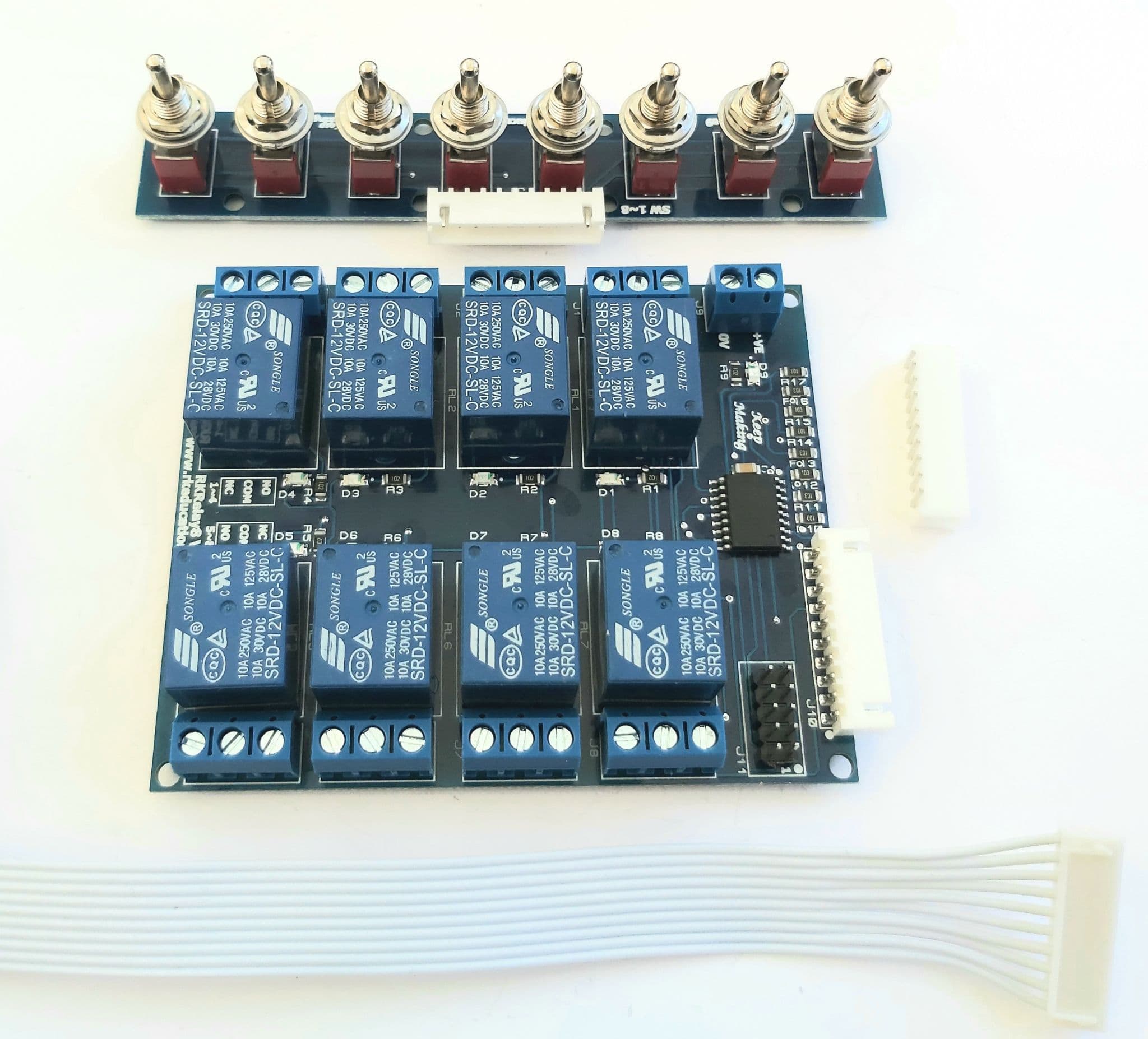

The system consists of a switch module connected to a relay module using a ribbon cable and users simply use a switch to power a relay on or off. The relay module can then be used for switching voltages on and off with each relay is capable of switching up to 10 amps. The system is sold fully soldered and includes a switch module, a relay module, a ribbon cable and 10 meters of 2 way wire.
  • This is an extremely versatile system and it has many uses
  • The system can be used to power circuits
  • Controls 8 separate circuits using 8 power relays
  • Each relay has its own 3 way terminal block

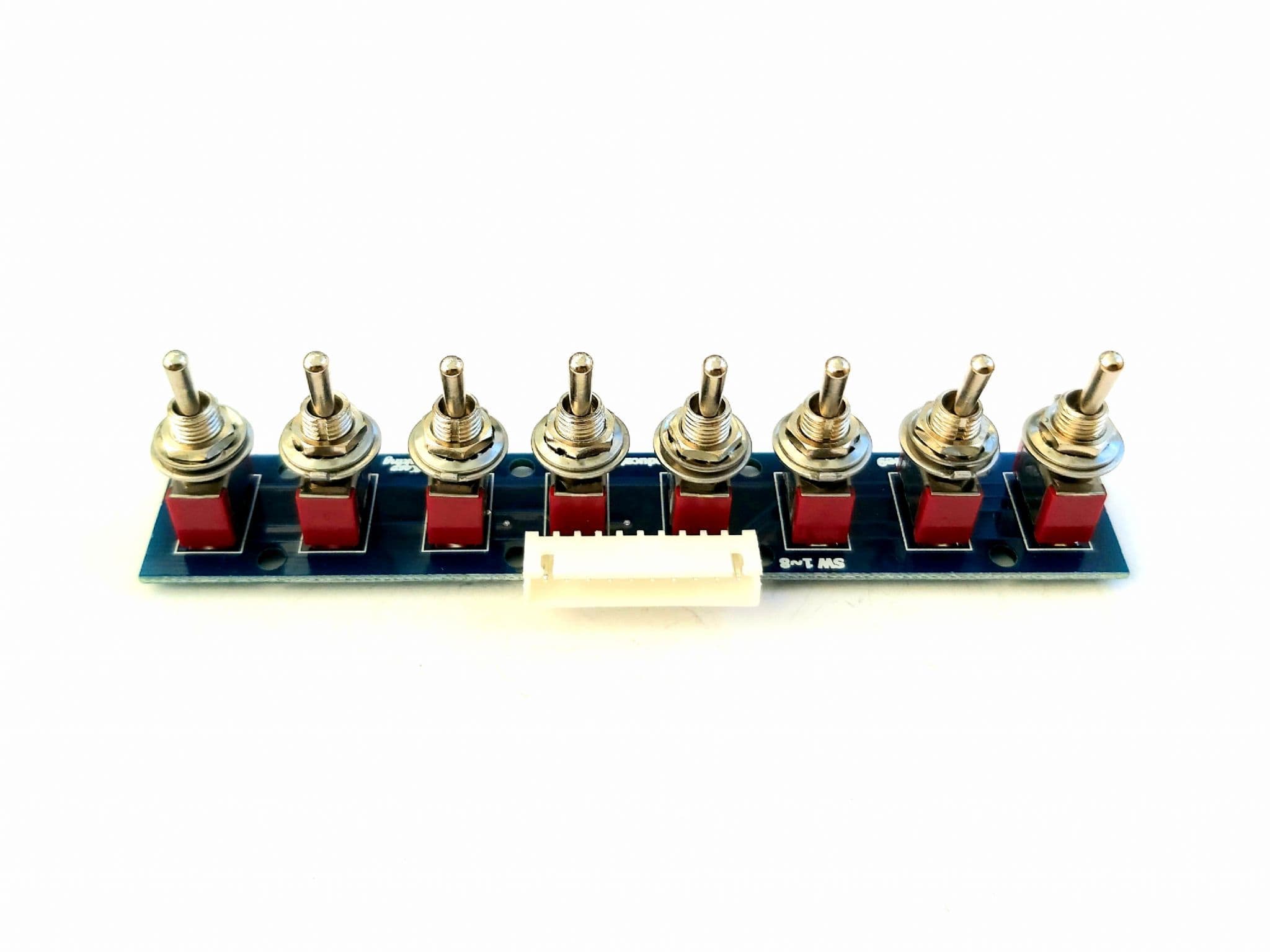

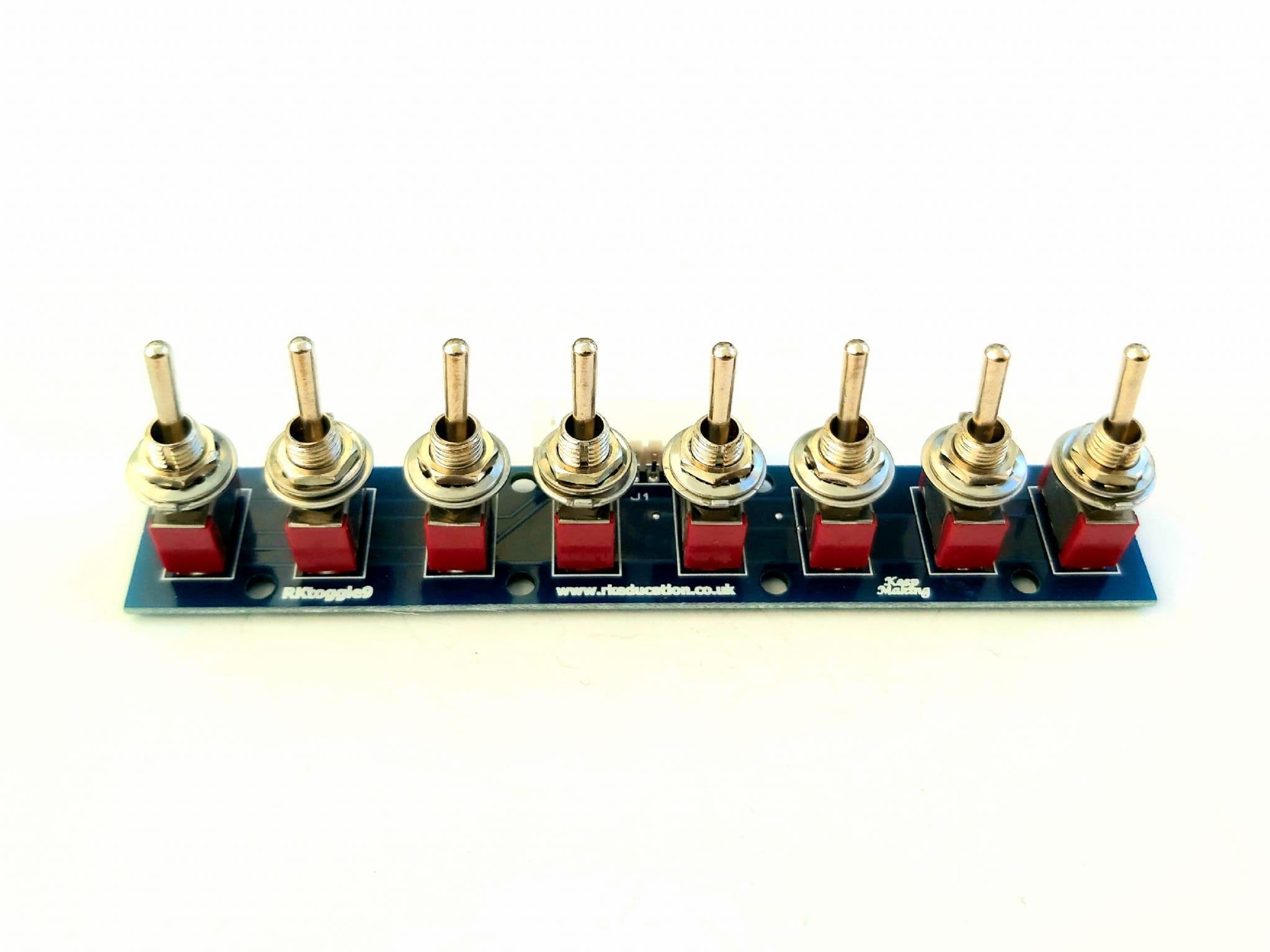

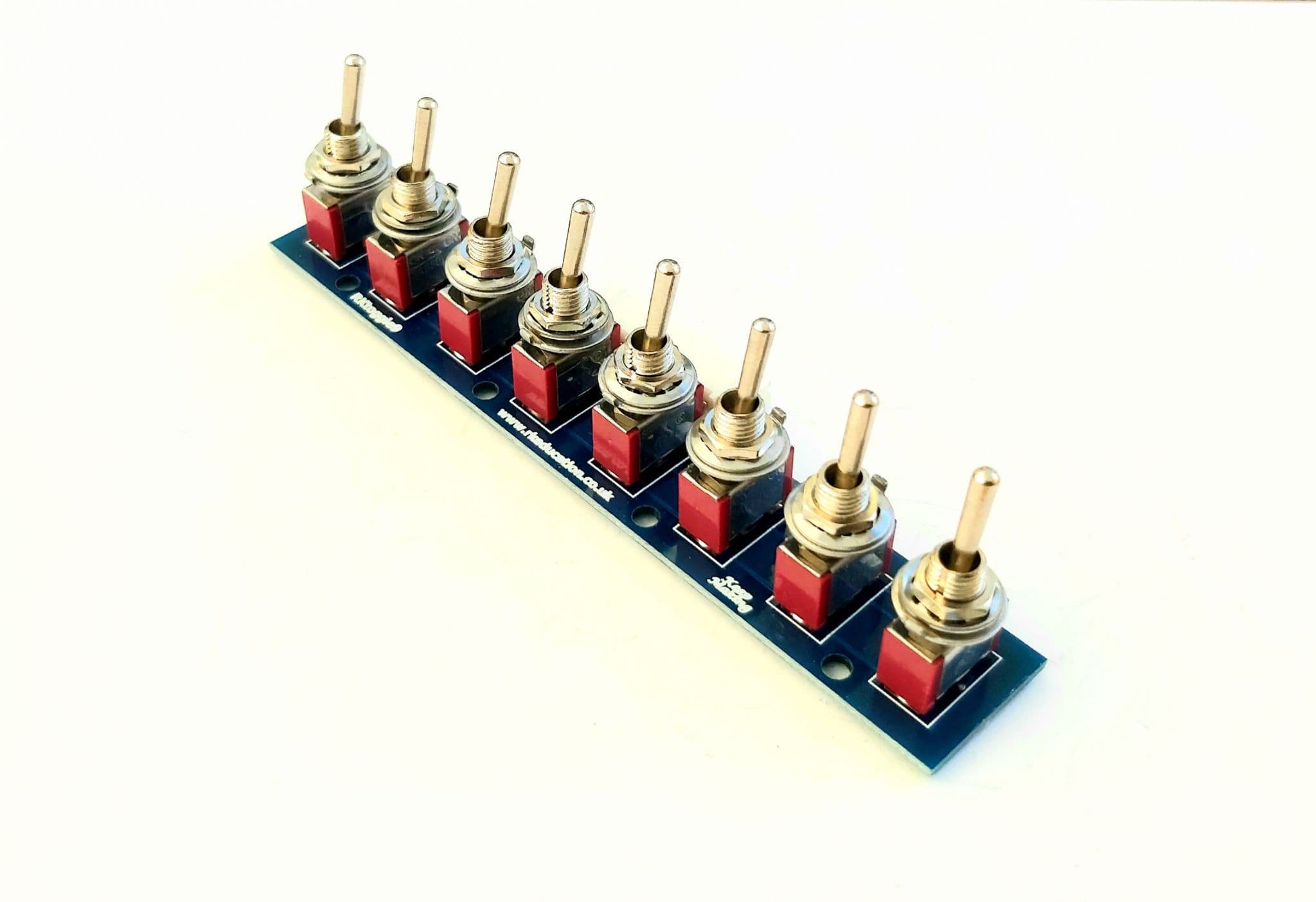

  • Each relay is controlled using a toggle switch
  • The toggle switch module connects to the relay module using a ribbon cable
  • The toggle switch module uses ON OFF panel mount toggle switches, other toggle switch option are available
  • Designed and manufactured in the UK
  • Uses a high quality, professional, double sided PCB with silkscreen layer
  • The PCBs have mounting holes - PCB mounting pads are included
  • Also included is a 10m roll of 2way cable

Technical specifications

Brand RK Education
Condition New
Product Code Relay System Panel ON OFF
