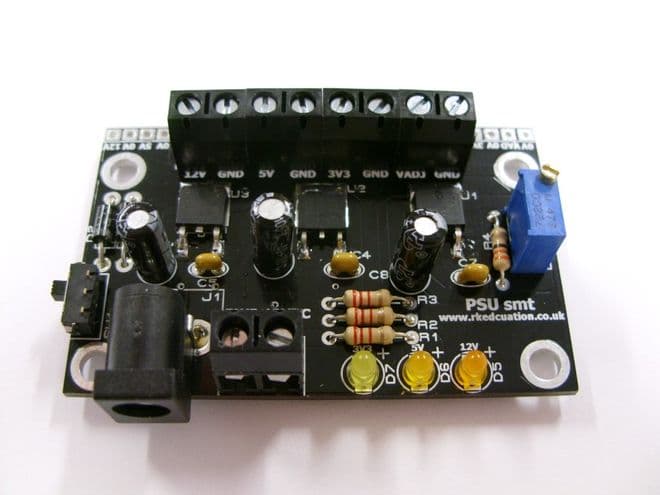

Quad Output SMT PSU with LD1117 V33, 7805 and LM317 Self Build Kit

Product code: QUAD PSU KIT
Quad Output SMT PSU.
£3.49
You will earn 3 loyalty points with this purchase

Product information

 Quad Output SMT PSU PCB - 3V3, 5VDC,12VDC and variable
  • The unit outputs regulated 3V3 and 5VDC with a 7805 and the input voltage - 12VDC recomended
  • Also has a variable regulated output from an LM317T
  • The PCB uses surface mount ICs
  • The PCB has 2 power inputs for maximum versitility, use either wires or DC socket - 2.1mm
  • Includes a miniature slide switch and 3 LED inicators
  • PCB terminal blocks and SIL sockets used for easy interfacing
  • The PCB has holes for PCB mounting feet
  • A clear silkscreen layer is used
  • The PCB is smart black and double sided
  • Perfect for allsorts of robotic and other electronic projects.
  • Black double sided PCB
  • Documentation and PDF Schematic available

Technical specifications

MPN Quad PSU
Product Code QUAD PSU KIT
Brand RKEducation
Condition New
